Two-way stirring reaction kett |
|
產品概述/Product overview
雙攪拌刮壁反應釜是一種強力攪伴和刮壁攪拌多功能為一體的反應容器設備，該設備對中高粘度和觸變形物料都有好的適應性；設備由于攪拌和分散能夠同時進行因此就能獲得好的反應效果。
Two-way stirring wall scraping reaction kettle is a kind of reaction vessel combing strong stirring, scraping and many other functions as a whole. The equipment is well adaptable to materials of middle & high viscosity and of contact deformation property. The equipment can be used for stirring and dispersing at the same time, therefore it enjoys good reaction result.
適用范圍/Application scope
雙攪拌刮壁反應釜能夠適合用于對各種物料的攬拌、溶解、分散及調漆，同時設備也有好的適應性能是一種合適的攪拌設備。
Two-way stirring wall scraping reaction kettle can be used for stirring, dissolving, dispersing of all kinds of materials and paint stirring. At the same time, this equipment has good adaptability which is a kind of ideal stirring equipment. |

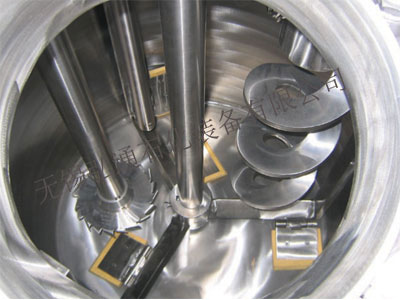

高速攪拌內部圖/High speed stirring internal figure |

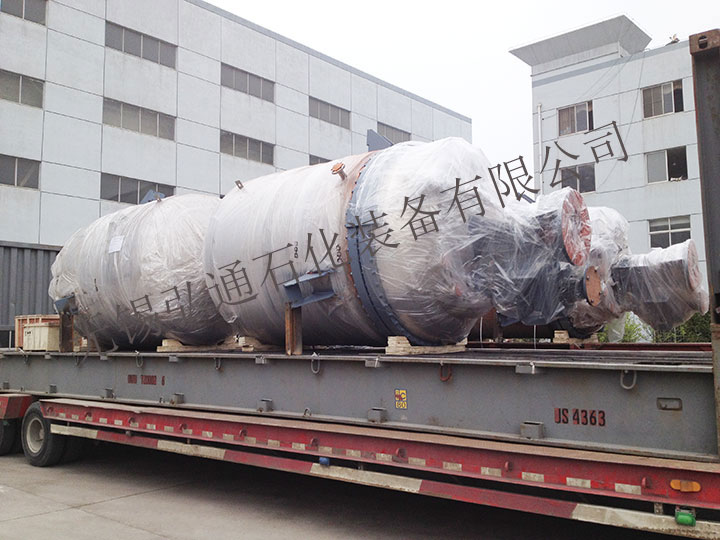

雙攪拌反應釜/Double stirred reactor |
設備的通用效能/General efficiency of the equipment
1、雙攪拌刮壁反應釜采用了現在科學的變頻調速設備，因此就能適合多不同工藝要求的生產需要。
2、設備也可以根據工藝的要求進行加熱和進行冷卻物料，加熱的方式完全能夠根據實際的需要，如可采用蒸汽和電加熱等等形式。
3、對于設備的攪拌形式也能采用多種，也能夠完全滿足實際的反應攪拌需要。
4、設備的罐體和管道都進行了鏡面的拋光處理，因此能適應對粘稠物料的反應需求。
5、雙攪伴刮壁反應釜也能夠配備真空泵，能夠進行真空抽泡。
6、設備也能選配底裝式分撒頭或者是管線式乳化頭，能夠快速的進行物料的分解和反應。
7、設備的控制器不但能夠監控整個設備的運行情況，而且還能清晰顯示出設備反應的溫度和攪拌轉速等數據。
1. Two-way stirring wall scraping reaction kettle adopts advanced frequency control device which makes it fit for many different technological requirements of production
2. The equipment can perform material heating and cooling according to process requirements. The heating method can completely meet actual requirements. Methods, such as steam and electric heating are all available.
3. The equipment also has various stirring types which can completely meet actual reaction and stirring requirements.
4. The tank body and pipes have gone through mirror polishing treatment which makes it more adaptable for reaction of viscous materials.
5. Two-way stirring wall scraping reaction kettle can be equipped with vacuum pump which enables vacuum bubble pumping.
6. The equipment can also be equipped with spreading head of bottom-installation type or emulsifying head of pipeline type which can enable quick decomposition and reaction of the materials.
7. The controller of the equipment can monitor operation of the whole equipment, it can also clearly display reaction temperature and rotation speed for stirring, etc.
注意事項/Matters needing attention
1、在使用雙攪拌刮壁反應釜講行反應的時候，要嚴格的按照設備能攪拌有效的容積去添加，嚴禁過載的進行使用，防止燒壞電機或者損壞減速機等部件。
2、當雙攪拌刮壁反應釜長期不用的時候，應該全部清洗干凈，并切斷電源同時在潤i滑部位注入潤滑油。
1. When reaction performs in two-way stirring wall scraping reaction kettle, please add material strictly with valid stirring volume of the equipment. Overload operation is strictly forbidden to prevent motor burnt-out or damages of reducer and other components.
2. When the two-way stirring wall scraping reaction kettle is not in use for a long time, it shall be completely cleaned. Add lubricating oil to required parts when cut off power supply. |
|
